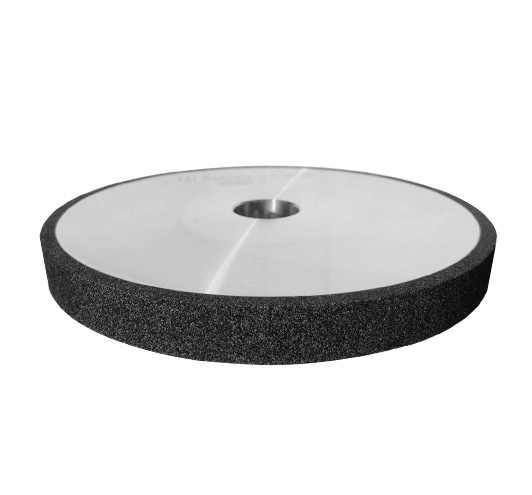

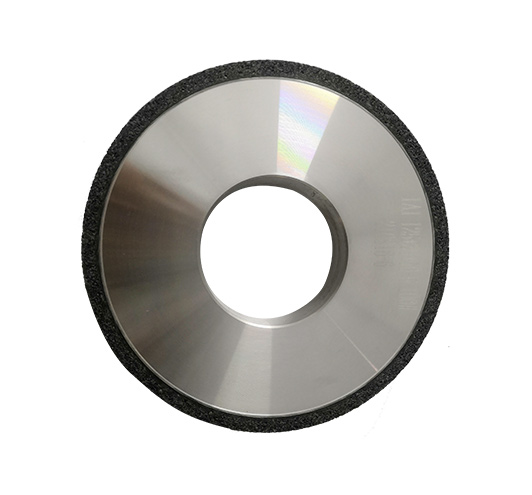

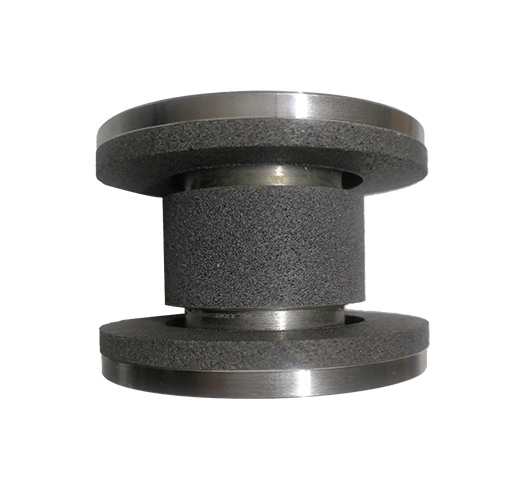

Ceramic CBN super-hard grinding wheel is used to process products with high dimensional accuracy, good consistency, and high requirements for straightness and roundness. Materials with high hardness, high strength and high toughness, which are difficult to process, are very easy for super-hard abrasive tools. Now they are widely used in the bearing industry, sewing accessories industry, compressor industry, mold industry, auto parts (oil pumps and nozzles), vane pump components, refrigeration compressor parts, engineering ceramic products and other industries.

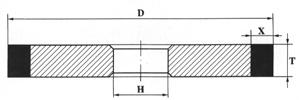

| D | T | H | ||||||||||||||||||||||||
| 3 | 4 | 5 | 6 | 8 | 10 | 12 | 15 | 16 | 20 | 25 | 32 | 40 | 50 | 60 | 6 | 10 | 12 | 13 | 16 | 20 | 32 | 75 | 127 | 203 | 305 | |
| 25 | X | X | X | X | X | X | X | X | X | |||||||||||||||||
| 30 | X | X | X | X | X | X | ||||||||||||||||||||
| 40 | X | X | X | X | X | X | X | X | ||||||||||||||||||
| 45 | X | X | ||||||||||||||||||||||||
| 50 | X | X | X | X | X | X | X | X | ||||||||||||||||||
| 60 | X | X | X | X | X | X | X | |||||||||||||||||||
| 75 | X | X | X | X | X | X | X | X | X | |||||||||||||||||
| 80 | X | X | X | X | X | X | X | X | ||||||||||||||||||
| 100 | X | X | X | X | X | X | X | X | X | X | ||||||||||||||||
| 115 | X | X | ||||||||||||||||||||||||
| 125 | X | X | X | X | X | X | X | X | X | X | ||||||||||||||||
| 150 | X | X | X | X | X | X | X | X | X | X | ||||||||||||||||
| 175 | X | X | X | X | X | X | ||||||||||||||||||||
| 200 | X | X | X | X | X | X | X | X | X | X | ||||||||||||||||
| 250 | X | X | X | X | X | X | X | X | X | X | X | X | ||||||||||||||
| 300 | X | X | X | X | X | X | X | X | X | X | X | |||||||||||||||
| 350 | X | X | X | X | X | X | X | X | X | X | X | |||||||||||||||
| 400 | X | X | X | X | X | X | X | X | X | X | X | X | ||||||||||||||
| 450 | X | X | X | X | X | X | X | |||||||||||||||||||
| 500 | X | X | X | X | X | X | X | X | ||||||||||||||||||
| 600 | X | X | X | X | X | X | X | |||||||||||||||||||
| 750 | X | X | X | X | X | X | X | |||||||||||||||||||
Ceramic CBN super-hard grinding wheel is used to process products with high dimensional accuracy, good consistency, and high requirements for straightness and roundness. Materials with high hardness, high strength and high toughness, which are difficult to process, are very easy for super-hard abrasive tools. Now they are widely used in the bearing industry, sewing accessories industry, compressor industry, mold industry, auto parts (oil pumps and nozzles), vane pump components, refrigeration compressor parts, engineering ceramic products and other industries.
1. the dressing frequency is low, the shape of the grinding wheel is well maintained, and 1500-2000 parts can be continuously ground at one time.
2. high machining precision, good dimensional consistency of batch parts and low trimming frequency.
3. the comprehensive cost is low. Considering the cost of equipment, personnel and effective time, the comprehensive cost can be reduced by about 1/3.
4. the grinding surface of the parts is of good quality, without burn or deterioration.
5. it has high sharpness and heat dissipation.
6. the ceramic CBN grinding wheel can meet the speed requirements above 160m/s.
1. it is used in the bearing industry, sewing accessories industry, compressor industry, mold industry, auto parts (oil pump and nozzle), vane pump parts, refrigeration compressor parts, engineering ceramic products and other industries.
2. cut in grinding of crankshaft main journal, connecting rod journal and retaining edge of vehicle and marine engines; Effectively grinding the peach shaped surface (cam surface) of camshaft and main journal;
3. precision grinding of outer diameter of rolling sleeve shaft, crankshaft thrust surface, outer ring of eccentric core and outer diameter of long and short shafts in the compressor industry.
This product can be customized in many different sizes, contact us first.
