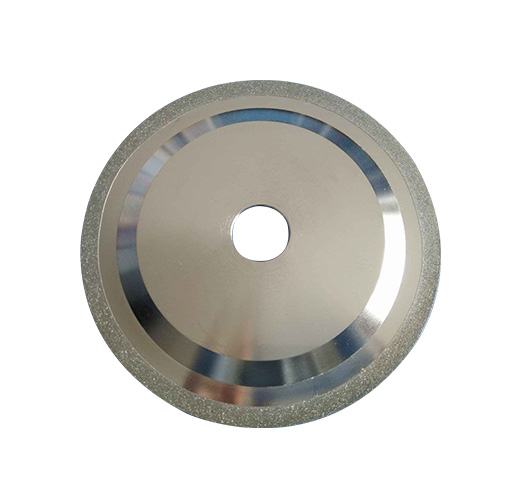

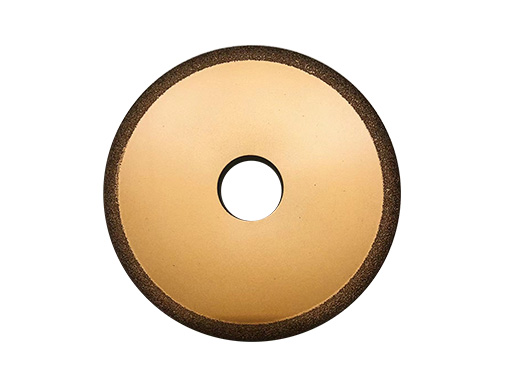

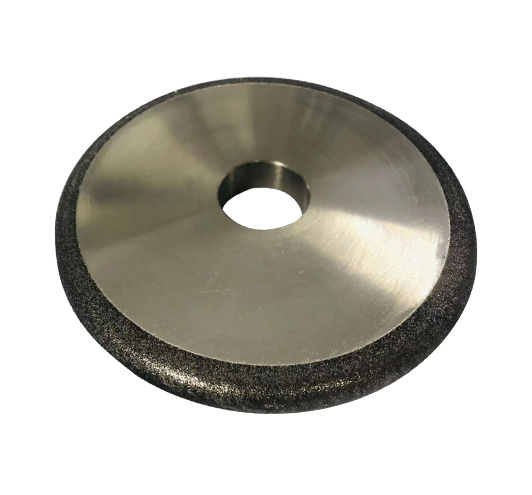

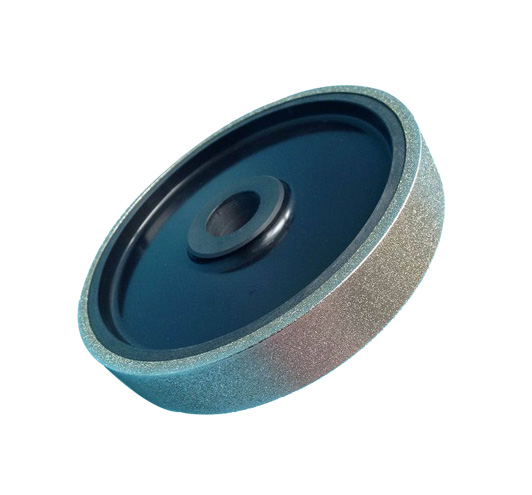

Electroplated diamond grinding wheel

Electroplated diamond wheel is a kind of diamond wheel made by electro chemical method. The working layer of the wheel contains diamond abrasive particles, and the diamond abrasive is bonded to the substrate by metal bond. Firstly, the thickness of deposited metal bond is 20% of the height of diamond abrasive particles (sand loading), and then continue to bond (thicken) diamond abrasive particles with metal bond, with a thickness of about 2/3 of the height of diamond abrasive particles. Including diamond dressing wheel, diamond grinding wheel for grinding or cutting.

1. no need to repair, easy to use and good form ability.

2. the single-layer structure determines that it can reach a very high working speed, up to 250 ~ 300m/s;

3. although there is only a single layer of diamond, it still has enough service life to withstand large loads.

4. electroplating is the only manufacturing method for roller grinding wheel with high precision requirements.

5. in terms of processing efficiency, the electroplated grinding wheel adopts higher grade abrasive and only has one layer of abrasive. It has its own advantages in terms of heat dissipation performance, good wear resistance and high grinding efficiency.

6. the wheel is not limited by shape and size, and can be used to prepare abrasive tools with complex shapes

Used for alloy nodular cast iron, alloy steel, bearing end face. Rollers, dressing tools and metal bonded grinding wheels are widely used in woodworking tools, metals, ceramics, quartz, optical glass, auto parts, semiconductors and other fields.

This product can be customized in many different sizes, contact us first.
