The cutting edge grinding wheel is made of white corundum and green silicon carbide. It is mainly used for dressing the cutting edge with diamond /CBN super-hard grinding wheel. When the surface of diamond /CBN grinding wheel is not sharp or the shape is deviated, this kind of grinding wheel can be used for grinding. According to the grain size of diamond /CBN grinding wheel, the corresponding wheel formula can be modified. In addition, it can also be used for modified forming grinding. It has good use effect and long service life.
| Unit:millimeter | ||
| Type | Size | Grit Size |

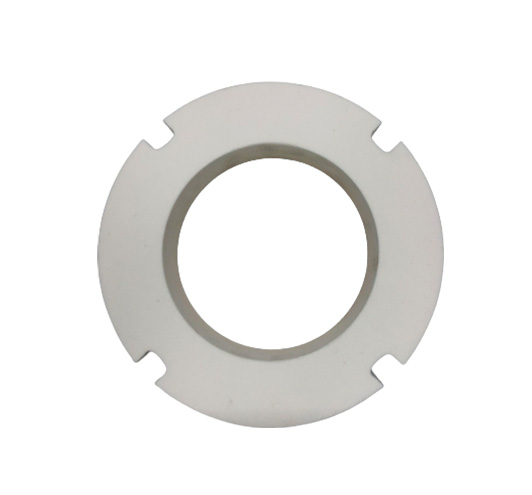

| White cutting edge wheel | 170*40*90 | 120# |
| White cutting edge wheel | 205*40*126 | 120# |
| White cutting edge wheel | 222*60*150 | 120# |
| White cutting edge wheel | 280*50*200 | 120# |
| White cutting edge wheel | 285*50*200 | 120# |
| White cutting edge wheel | 300*50*200 | 120# |
| White cutting edge wheel | 330*60*210 | 120# |

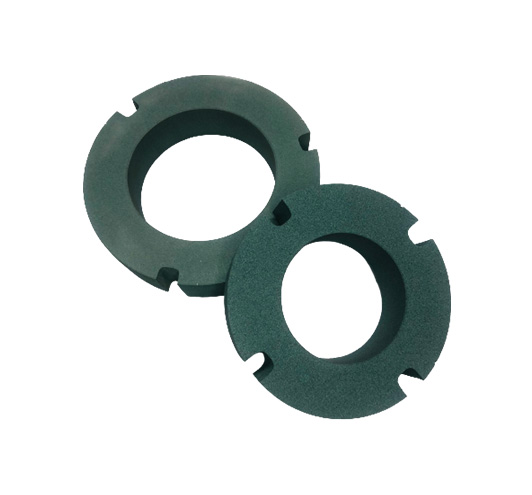

| Green silicon carbide cutting edge wheel | 104*40*22 | 220# |
| Green silicon carbide cutting edge wheel | 120*40*60 | 220# |
| Green silicon carbide cutting edge wheel | 167*40*90 | 220# |
| Green silicon carbide cutting edge wheel | 170*40*90 | 180# |
| Green silicon carbide cutting edge wheel | 170*40*90 | 220# |
| Green silicon carbide cutting edge wheel | 205*40*126 | 180# |
| Green silicon carbide cutting edge wheel | 205*40*126 | 220# |
| Green silicon carbide cutting edge wheel | 280*40*200 | 180# |
| Green silicon carbide cutting edge wheel | 280*40*200 | 220# |
| Green silicon carbide cutting edge wheel | 285*40*200 | 150# |
| Green silicon carbide cutting edge wheel | 285*40*200 | 220# |
| Green silicon carbide cutting edge wheel | 330*40*200 | 220# |
The cutting edge grinding wheel is made of white corundum and green silicon carbide. It is mainly used for dressing the cutting edge with diamond /CBN super-hard grinding wheel. When the surface of diamond /CBN grinding wheel is not sharp or the shape is deviated, this kind of grinding wheel can be used for grinding. According to the grain size of diamond /CBN grinding wheel, the corresponding wheel formula can be modified. In addition, it can also be used for modified forming grinding. It has good use effect and long service life.
Grinding materials include cast iron, non-ferrous metals, mild steel, hard steel, 300 (or 400) series stainless steel, tool or high-speed steel, malleable cast steel, (al Ni Co) magnetic steel, brass, chromium plate, etc.
1.Short time for blade trimming
2.The parallelism of blade trimming can reach 0.02mm
3.Good sharpness of grinding disc after blade trimming
4.After cutting edge trimming, the number of grinding work-pieces is large, and the correction times are reduced
5.With sharp abrasive grains and high hardness, it can grind hard and brittle materials such as cemented carbide, optical glass, ceramics and alloys. Moreover, it has good thermal conductivity and is suitable for grinding work-pieces that are easily deformed by heat.
This product can be customized in many different sizes, contact us first.
